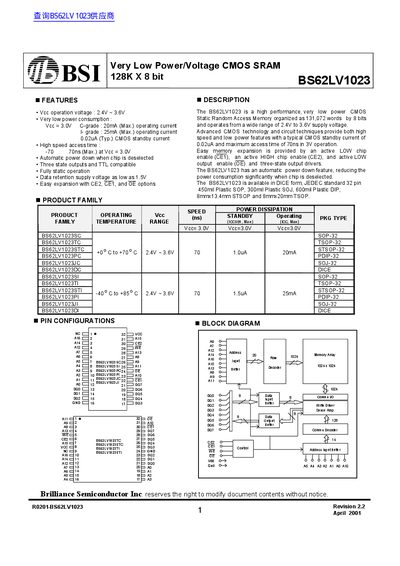

The BS62LV1023 is a high performance, very low power CMOS Static Random Access Memory organized as 131,072 words by 8 bits and operates from a wide range of 2.4V to 3.6V supply voltage.
The BS62LV1023 is a 128 K × 8‑bit static RAM offering very low power consumption and a wide operating voltage range of 2.4 V to 3.6 V. It features automatic power‑down, three‑state TTL‑compatible outputs, and can be expanded using CE1, CE2 and OE pins.
The device is supplied in multiple package styles (DICE, SOP‑32, TSOP‑32, SOJ‑32, PDIP) and is rated for industrial temperature ranges, making it suitable for a variety of embedded applications.
| Operating voltage range | 2.4 V ~ 3.6 V |
|---|---|
| Typical standby current | 0.02 µA |
| Maximum access time | 70 ns |
| Operating temperature range | -40 °C ~ +85 °C |
It operates from 2.4 V to 3.6 V.
The typical CMOS standby current is 0.02 µA.
The maximum access time is 70 ns.
