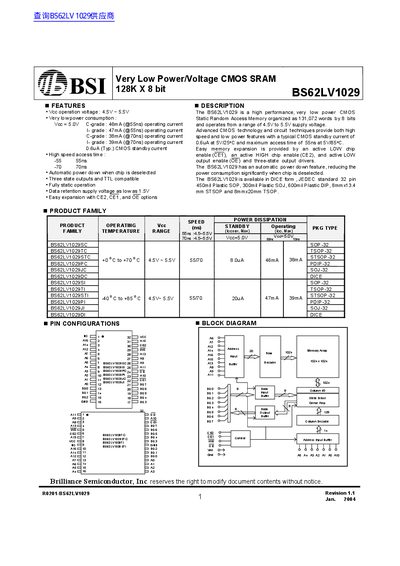

BS62LV1029 is a high performance, very low power CMOS Static Random Access Memory organized as 131,072 words by 8 bits and operates from a range of 4.5V to 5.5V supply voltage.
The BS62LV1029 SRAM provides high‑speed access (55 ns typical, 70 ns max) while consuming very little power. It operates from 4.5 V to 5.5 V, has a typical standby current of 0.6 µA at 5 V/25 °C, and retains data down to 1.5 V supply.
The device is offered in several JEDEC‑standard packages (DICE, SOP‑32, SOJ‑32, DIP‑32, STSOP‑32, TSOP‑32). Detailed pin descriptions, electrical characteristics, switching waveforms, and ordering information are provided in the document.
| Supply voltage | 4.5 V ~ 5.5 V |
|---|---|
| Standby current (CMOS) | 0.6 µA typ (5 V, 25 °C) |
| Access time | 55 ns typ, 70 ns max |
| Data‑retention voltage | 1.5 V min |
| Operating temperature range | -40 °C ~ +85 °C |
It operates from 4.5 V to 5.5 V.
The typical CMOS standby current is 0.6 µA at 5 V and 25 °C.
The maximum access time is 70 ns, with a typical time of 55 ns.
