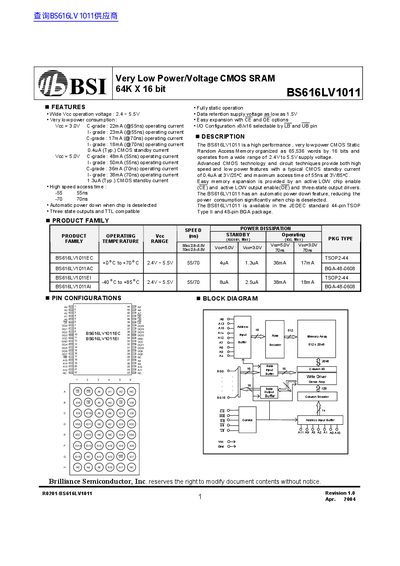

Very Low Power/Voltage CMOS SRAM 64K x 16 bit product features a wide Vcc operation voltage range (2.4 V to 5.5 V), very low power consumption, high speed access time and automatic power down function.
The BS616LV1011 is a high-performance Static Random Access Memory organized as 65,536 words by 16 bits. It operates from a wide supply voltage range of 2.4V to 5.5V and features advanced CMOS technology for high speed and low power consumption.
The device includes automatic power-down when deselected to reduce current significantly. It is available in JEDEC standard 44-pin TSOP Type II and 48-pin BGA packages, with data retention supply voltage as low as 1.5V.
| Organization | 64K x 16 bit |
|---|---|
| Operating Voltage Range | 2.4V ~ 5.5V |
| Access Time (Typical) | 55ns / 70ns |
| Standby Current (CMOS, Typ.) | 0.4uA @ 3V |
| Operating Temperature Range (Industrial) | -40°C to +85°C |
| Data Retention Voltage | 1.5V |
| Package Types | 44-pin TSOP, 48-pin BGA |
The device operates from a wide range of 2.4V to 5.5V supply voltage.
Yes, it features an automatic power down when the chip is deselected.
It is available in 44-pin TSOP Type II and 48-pin BGA packages.
