Maxim MAX1208 12-Bit 80Msps 3.3V ADC Datasheet

The MAX1208 is a 3.3V, 12-bit, 80Msps analog-to-digital converter (ADC) featuring a fully differential wideband track-and-hold (T/H) input amplifier, driving a low-noise internal quantizer. The analog input stage accepts single-ended or differential signals. The MAX1208 is optimized for low power, small size, and high dynamic performance in baseband applications. Powered from a single 3.0V to 3.6V supply, the MAX1208 consumes only 373mW while delivering a typical signal-to-noise (SNR) performance of 68.2dB at an input frequency of 32.5MHz. In addition to low operating power, the MAX1208 features a 3µW power-down mode to conserve power during idle periods. A flexible reference structure allows the MAX1208 to use the internal 2.048V bandgap reference or accept an externally applied reference. The reference structure allows the full-scale analog input range to be adjusted from ±0.35V to ±1.15V. The MAX1208 provides a common-mode reference to simplify design and reduce external component count in differential analog input circuits. The MAX1208 supports both a single-ended and differential input clock drive. Wide variations in the clock duty cycle are compensated with the ADC’s internal duty-cycle equalizer (DCE). ADC conversion results are available through a 12-bit, parallel, CMOS-compatible output bus. The digital output format is pin selectable to be either two’s complement or Gray code. A data-valid indicator eliminates external components that are normally required to indicate when the ADC is in conversion mode.

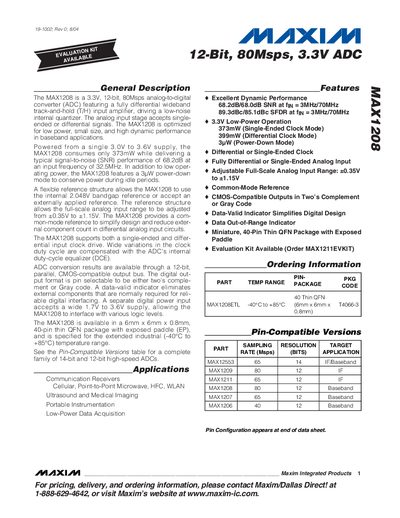

Maxim MAX1208 12-Bit 80Msps 3.3V ADC Datasheet - cover page
Brand
Maxim
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
27
File format
PDF
File size
1 MB
Published
07 May, 2012
Updated
01 October, 2023
Model
80MSPS
MD5 checksum
B55382A2982DFFD8EBA2A03C2B4D6FB8

About this manual

The MAX1208 is a 12‑bit, 80 Msps analog‑to‑digital converter optimized for low power, small size, and high dynamic performance. It operates from a single 3.0 V to 3.6 V supply and offers both internal and external reference options, with a configurable full‑scale input range of +0.35 V to +1.15 V.

The device is supplied in a 40‑pin thin QFN package (6 mm × 6 mm × 0.8 mm) with an exposed paddle for heat sinking. Key electrical characteristics include 373 mW typical power consumption in single‑ended mode, 3 µW power‑down current, 68.2 dB SNR, and up to 89.3 dBc SFDR at 3 MHz input.

What's inside

  • General Description
  • Applications
  • Features
  • Absolute Maximum Ratings
  • Electrical Characteristics
  • Timing Characteristics
  • Typical Operating Characteristics
  • Output Noise
  • Overdrive Recovery Time
  • Pin Configuration

Specifications

Resolution12 bits
Maximum Sampling Rate80 Msps (80 MHz clock)
Supply Voltage (analog)3.0 V to 3.6 V
Digital Supply Voltage1.7 V to 3.6 V
Typical Power Consumption (single‑ended)373 mW
Power‑down Current3 µW
Full‑Scale Input Range+0.35 V to +1.15 V
Package40‑pin thin QFN, 6 mm × 6 mm × 0.8 mm, exposed paddle

Frequently asked questions

How much power does the MAX1208 consume in single‑ended clock mode?

In single‑ended clock mode the device consumes about 373 mW.

What package is the MAX1208 available in?

It is offered in a 40‑pin thin QFN package measuring 6 mm × 6 mm × 0.8 mm with an exposed paddle.

What is the maximum sampling rate of the MAX1208?

The ADC can sample at up to 80 Msps, driven by an 80 MHz maximum clock frequency.
