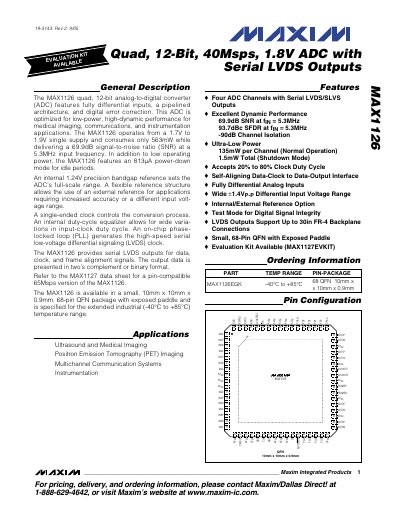

The MAX1126 quad analog‑to‑digital converter features fully differential inputs, a pipelined architecture, and digital error correction. It operates from a 1.7 V to 1.9 V single supply, consumes only 563 mW in normal mode and 1.5 mW in shutdown, and delivers 69.9 dB SNR at 5.3 MHz.
Key features include four 12‑bit channels with LVDS/SLVS outputs, a flexible reference structure (internal 1.24 V bandgap or external), a small 68‑pin QFN package, and extensive timing and electrical specifications for high‑speed board designs.
| Resolution | 12 bits |
|---|---|
| Supply Voltage (AVDD) | 1.7 V – 1.9 V |
| Power Consumption (Normal) | 563 mW |
| Power Consumption (Shutdown) | 1.5 mW |
| Signal‑to‑Noise Ratio | 69.9 dB at 5.3 MHz |
| Spurious‑Free Dynamic Range | 93.7 dBc at 5.3 MHz |
| Input Differential Range | ±1.4 V pp |
| Package | 68‑Pin QFN 10 mm × 10 mm × 0.9 mm |
The device can convert at up to 40 MHz.
It draws only about 1.5 mW when shut down.
It includes an internal 1.24 V precision bandgap reference.
