Maxim Integrated MAX1124 10‑Bit 250Msps Analog‑to‑Digital Converter Datasheet

The MAX1124 is a monolithic 10-bit, 250Msps analog-to-digital converter (ADC) optimized for outstanding dynamic performance at high IF frequencies up to 500MHz. The product operates with conversion rates of up to 250Msps while consuming only 477mW. At 250Msps and an input frequency of 100MHz, the MAX1124 achieves a spurious-free dynamic range (SFDR) of 71dBc. Its excellent signal-to-noise ratio (SNR) of 57.1dB at 10MHz remains flat (within 1dB) for input tones up to 500MHz. This makes the MAX1124 ideal for wideband applications such as digital predistortion in cellular base-station transceiver systems. The MAX1124 requires a single 1.8V supply. The analog input is designed for either differential or single-ended operation and can be AC- or DC-coupled. The ADC also features a selectable on-chip divide-by-2 clock circuit, which allows the user to apply clock frequencies as high as 500MHz. This helps to reduce the phase noise of the input clock source. A differential LVDS sampling clock is recommended for best performance. The converter’s digital outputs are LVDS compatible, and the data format can be selected to be either two’s complement or offset binary. The MAX1124 is available in a 68-pin QFN with exposed pad (EP) and is specified over the industrial (-40°C to +85°C) temperature range. For pin-compatible, lower speed versions of the MAX1124, refer to the MAX1122 (170Msps) and the MAX1123 (210Msps) data sheets. For a pin-compatible 8-bit version,

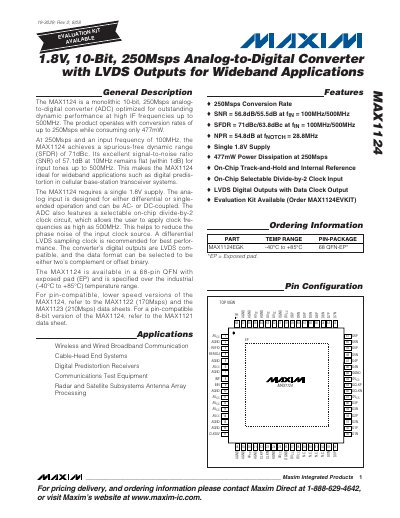

Maxim Integrated MAX1124 10‑Bit 250Msps Analog‑to‑Digital Converter Datasheet - cover page
Brand
Maxim
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
17
File format
PDF
File size
233 KB
Published
07 May, 2012
Updated
29 September, 2023
Model
250MSPS
MD5 checksum
7A5205A7BB6C4674B694C31A4CDDAEE6

About this manual

The MAX1124 is a monolithic 10‑bit, 250 Msps analog‑to‑digital converter optimized for high‑IF frequencies up to 500 MHz. It operates from a single 1.8 V supply and consumes only 477 mW at its maximum conversion rate. The device offers LVDS‑compatible digital outputs and selectable data formats (two’s complement or offset binary).

Typical applications include wireless and wired broadband communication, digital predistortion for cellular base‑station transceivers, test equipment, radar and satellite subsystems, and antenna array processing. The converter is supplied in a 68‑pin QFN‑EP package and is specified for an industrial temperature range of –40 °C to +85 °C.
