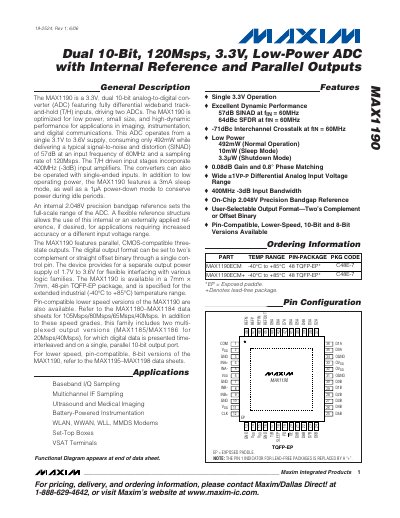

The MAX1190 is a 3.3V, dual 10-bit analog-to-digital con- verter (ADC) featuring fully differential wideband track- and-hold (T/H) inputs, driving two ADCs. The MAX1190 is optimized for low power, small size, and high-dynamic performance for applications in imaging, instrumentation, and digital communications. This ADC operates from a single 3.1V to 3.6V supply, consuming only 492mW while delivering a typical signal-to-noise and distortion (SINAD) of 57dB at an input frequency of 60MHz and a sampling rate of 120Msps. The T/H driven input stages incorporate 400MHz (-3dB) input amplifiers. The converters can also be operated with single-ended inputs. In addition to low operating power, the MAX1190 features a 3mA sleep mode, as well as a 1µA power-down mode to conserve power during idle periods. An internal 2.048V precision bandgap reference sets the full-scale range of the ADC. A flexible reference structure allows the use of this internal or an externally applied ref- erence, if desired, for applications requiring increased accuracy or a different input voltage range. The MAX1190 features parallel, CMOS-compatible three- state outputs. The digital output format can be set to two’s complement or straight offset binary through a single con- trol pin. The device provides for a separate output power supply of 1.7V to 3.6V for flexible interfacing with various logic families. The MAX1190 is available in a 7mm ✕ 7mm, 48-pin TQFP-EP package, and is specified for t
The MAX1190 is a 3.3 V dual 10‑bit analog‑to‑digital converter featuring fully differential wideband track‑and‑hold inputs and parallel three‑state CMOS outputs. It operates from a single 3.1 V to 3.6 V supply and delivers 57 dB SINAD at 60 MHz input.
Designed for low power and small size, the device includes a 3 mA sleep mode and a 1 µA shutdown mode, an internal 2.048 V precision bandgap reference, and selectable output format (two’s‑complement or offset binary). It is offered in a 7 mm × 7 mm, 48‑pin TQFP‑EP package and is rated for –40 °C to +85 °C operation.
| Supply Voltage | 3.1 V to 3.6 V |
|---|---|
| Sampling Rate | 120 Msps |
| Power Dissipation (Normal) | 492 mW |
| Sleep Mode Current | 3 mA |
| Shutdown Current | 1 µA |
| Resolution | 10 bits |
| Output Format | Two’s complement or offset binary |
| Package | 48‑pin TQFP‑EP, 7 mm × 7 mm |
| Internal Reference Voltage | 2.048 V |
The maximum clock frequency is 120 MHz.
The internal bandgap reference provides 2.048 V.
Yes, the output format can be set to either two’s‑complement or straight offset binary via a control pin.
