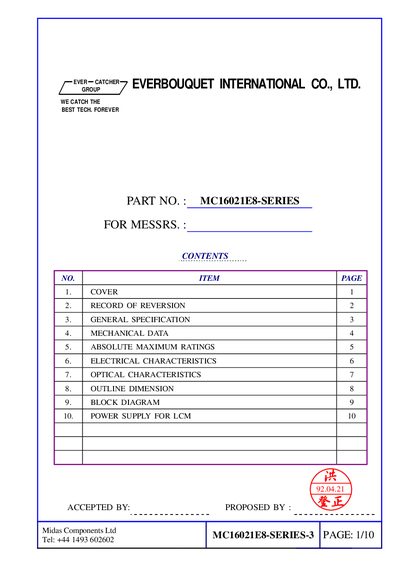

This datasheet describes the MC16021E8 Series LCD module produced by Everbouquet. It includes general specifications, mechanical dimensions, absolute maximum ratings, and detailed electrical and optical characteristics.
The document also contains pin‑out information, block diagrams, and recommended power‑supply values for the module and its LED backlight, helping designers integrate the display into their products.
| Number of Dots | 16 CH * 2 LINE |
|---|---|
| Module size | 84.0 mm W × 44.0 mm H × 10.01 mm (max) |
| Effective area | 64.5 mm W × 16.0 mm H |
| Dot size | 0.56 mm W × 0.66 mm H |
| Logic power‑supply voltage | 6.0 V |
| Backlight type | LED |
| Viewing angle | 20‑30° |
| LED current (type A) | 30 mA / 40 mA |
The module measures 84.0 mm wide, 44.0 mm high, with a maximum thickness of 10.01 mm.
It uses an LED backlight.
The recommended LED current for type A is 30 mA (typical) with a maximum of 40 mA.
The absolute maximum logic power‑supply voltage is 6.0 V.
