This is a LCD display, model is MC1602J-SERIES

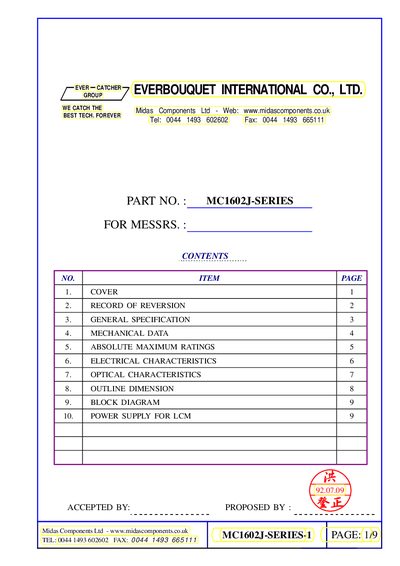

This datasheet describes the MC1602J Series LCD module manufactured by Everbouquet International. It includes general specifications, mechanical dimensions, absolute maximum ratings, and detailed electrical and optical characteristics.
Key sections cover the module size, character layout, power supply requirements, backlight type, viewing angles, contrast, and response times, along with a block diagram and pin‑out information for integration into devices.
| Number of characters | 16 CH * 2 LINE |
|---|---|
| Module size (max) | 122.0 W * 44.0 H * 15.0 T mm |
| Effective display area | 99.0 W * 24.0 H mm |
| Character pitch | 6.0 mm |
| Power supply voltage range | 0 – 6.0 V |
| Backlight type | LED BACKLIGHT |
The display supports 16 characters per line across 2 lines.
The logic power supply can be between 0 V and 6.0 V.
The module measures up to 122.0 mm wide, 44.0 mm high, and 15.0 mm thick.
The module uses an LED backlight.
