The MG1603GC9-SERIES is a liquid crystal module used to display numbers and characters. It has high brightness, high contrast, wide viewing angle and other characteristics. It is widely used in industrial, instrumentation, instruments and other fields.
This document details the technical specifications of the Everbouquet MG1603GC9 Series LCD module. It includes general specifications, mechanical dimensions, absolute maximum ratings, electrical and optical characteristics, as well as block diagrams and power supply information.

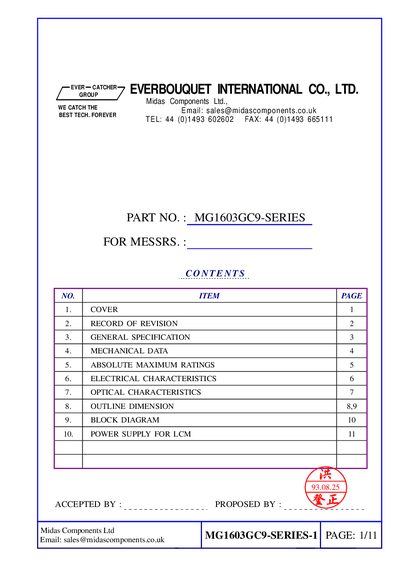

The sheet is organized with a table of contents covering general specs, mechanical data, maximum ratings, electrical characteristics, optical characteristics, outline dimensions, block diagram, and power supply details for the LCM, offering a concise reference for designers and engineers.
| Resolution | 160 x 32 dots |
|---|---|
| Module size (mm) | 80.0 x 36.0 x 10.0 |
| Effective area (mm) | 64.5 x 16.0 |
| Active area (mm) | 59.17 x 11.81 |
| Dot size (mm) | 0.34 x 0.34 |
| Logic supply voltage range | -0.3 V to 5.5 V |
| Viewing angle | 30°–40° |
| Contrast ratio (K) | 3.0–4.0 |
The module has a resolution of 160 × 32 dots.
The logic supply voltage (Vpp‑Vss) may be as high as 5.5 V.
