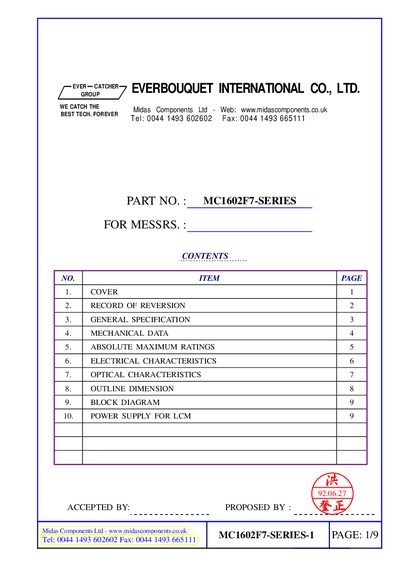

This is a specification manual for the MC1602F7-SERIES product model.
This document details the specifications of the Everbouquet MC1602F7 Series LCD module. It includes general specifications, mechanical data, absolute maximum ratings, electrical and optical characteristics, outline dimensions, and a block diagram with power supply information.
Key sections cover module size, dot configuration, viewing angles, backlight type, and recommended driving voltages, offering designers the necessary data to integrate the display into their products.
| Number of dots | 16 CH × 2 LINE |
|---|---|
| Module size (W×H×max thickness) | 85.0 mm × 36.0 mm × 10.01 mm |
| Character pattern | 5 × 7 dots + cursor |
| Character pitch | 3.55 mm |
| Dot size | 0.56 mm × 0.66 mm |
| Dot pitch | 0.60 mm × 0.70 mm |
| Recommended LCD driving voltage (TN type) | Vpp‑Vo = 4.2 V at 25 °C |
The module measures 85.0 mm wide, 36.0 mm high, with a maximum thickness of 10.01 mm.
The recommended driving voltage is Vpp‑Vo = 4.2 V at a temperature of 25 °C.
The display uses a 5 × 7 dot matrix per character plus a cursor.
