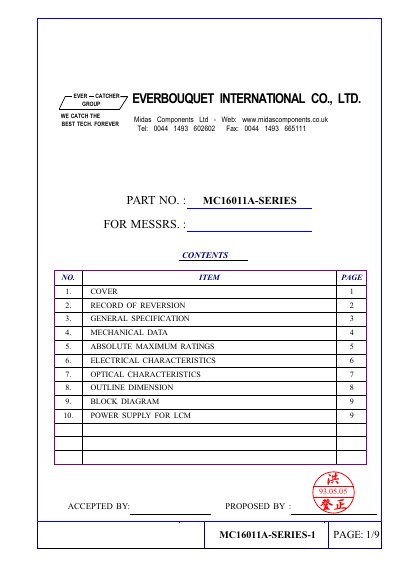

General specifications, mechanical data, absolute maximum ratings, electrical characteristics, optical characteristics, outline dimension, block diagram and power supply for LCM
The MC16011A‑SERIES LCD module specification provides detailed mechanical, electrical and optical data for designers. It includes module size, dot configuration, power supply requirements, absolute maximum ratings and a block diagram of the display circuitry.
Key sections cover general specifications, mechanical data, absolute maximum ratings, electrical characteristics, optical characteristics, outline dimensions and the block diagram, allowing quick reference to essential parameters for integration into products.
| Module size | 80.0 mm W × 36.0 mm H |
|---|---|
| Number of dots | 16 CH × 1 LINE |
| Power supply voltage (VDD) | 5.0 ± 0.25 V |
| Logic input voltage | 6.0 V |
The module is designed to operate with a VDD of 5.0 ± 0.25 V.
The viewing angle at 6 o’clock is 0°.
