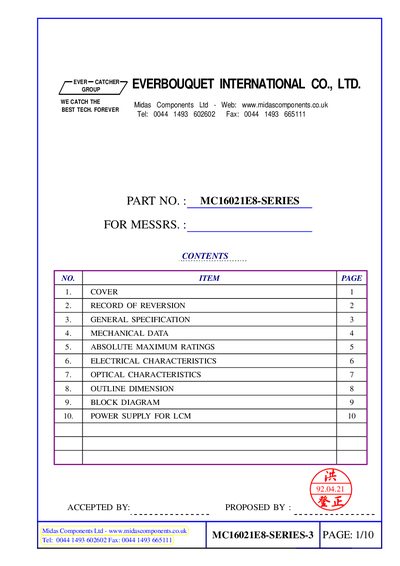

Everbouquet MC16021E8 Series Datasheet
Datasheet 10 pages · 603 KB · EN
The MC16021E8 Series is an LCD module offered by Everbouquet International. The document lists its general specifications, mechanical dimensions, electrical ratings, and optical performance.
Key sections include mechanical data (module size, dot pitch), absolute maximum ratings, detailed electrical characteristics (input/output voltages, LED backlight), and optical characteristics such as viewing angles and contrast ratios.
EVERBOUQUET MC16021E8-SERIES specifications
| Number of dots | 16 CH × 2 LINE |
|---|---|
| Module size | 84.0 W × 44.0 H × 10.01 mm (max) |
| Effective area | 64.5 W × 16.0 H mm |
| Dot size | 0.56 W × 0.66 H mm |
| Output voltage (typical) | 0.205 V |
| Backlight type | LED |
All EVERBOUQUET MC16021E8-SERIES documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
