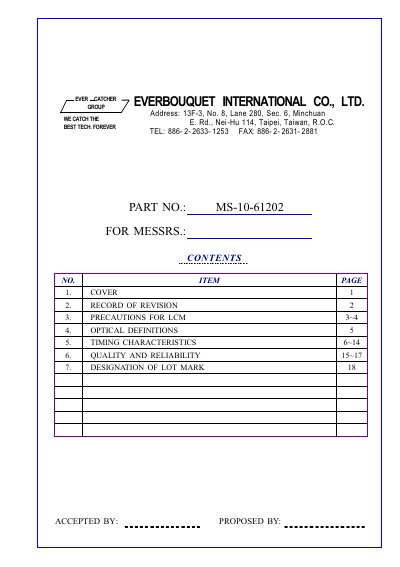

This manual describes the proper handling, storage, and soldering procedures for the Everbouquet MS-10-61202 LCD module (LCM). It includes safety warnings, static‑electric protection, and environmental requirements to ensure reliable operation.
The document also defines optical parameters, timing characteristics for read/write operations, and the quality and reliability test criteria the module must meet before shipment. Lot‑mark identification and inspection criteria are listed in the final sections. This manual is written in Chinese.
| Enable cycle time (tCYC) | 1.0 µs |
|---|---|
| Enable high level width (PWEH) | 450 ns |
| Enable low level width (PWEL) | 450 ns |
| Enable rise time (tr) | 25 ns |
| Enable fall time (tf) | 25 ns |
| Address setup time (tAS) | 140 ns |
| Address hold time (tAH) | 10 ns |
| Data setup time (tDSW) | 200 ns |
| Data delay time (tDDR) | 320 ns |
| Ambient test temperature | 25 ± 5 °C |
| Test humidity | 60 ± 20 % RH |
Store the module in its anti‑static bag or in a sealed anti‑static container at 0 °C – 35 °C, 50 %– 60 % RH, away from direct sunlight and fluorescent light.
