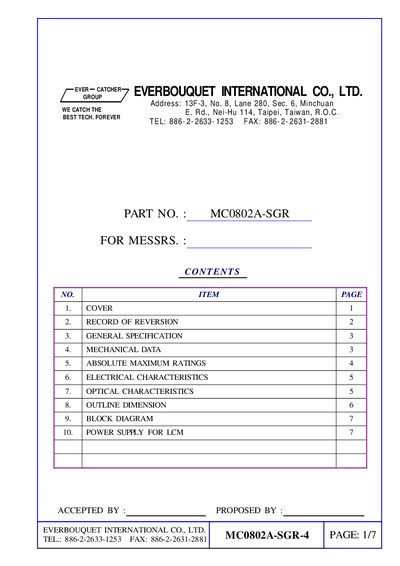

This is a datasheet for MC0802A-SGR. It includes general specification, mechanical data, absolute maximum ratings, electrical characteristics, optical characteristics, outline dimension, block diagram and power supply for LCD.
This handbook provides detailed information on the Everbouquet MC0802A-SGR LCD module, including general specifications, mechanical data, absolute maximum ratings, electrical and optical characteristics, and dimensional drawings. It also contains a block diagram and recommended power supply details for the LCM.
The document includes revision history, mechanical dimensions such as module size (25.0 W × 17.5 H × 43 T mm) and character layout (8 characters × 2 lines), as well as electrical limits like a supply voltage range of 0 V to 6.0 V and recommended LCD driving voltages for various temperatures.
| Number of characters | 8 CH × 2 LINE |
|---|---|
| Module size | 25.0 W × 17.5 H × 43 T mm |
| Effective area | 21.0 W × 9.0 H mm |
| Character pattern | 5 × 7 dots |
| Character size | 1.845 W × 2.595 H mm |
| Character pitch | 2.25 mm |
| Dot size | 0.345 W × 0.345 H mm |
| Dot pitch | 0.375 W × 0.375 H mm |
| Viewing direction | 6 o’clock |
| LCD type | STN gray reflective |
| Operating temperature range | -20 °C to 70 °C |
| Recommended LCD driving voltage at 25 °C | 4.5 V – 3.4 V |
The recommended LCD driving voltage at 25 °C is between 4.5 V and 3.4 V.
The module can operate from –20 °C up to 70 °C.
The display shows 8 characters per line on 2 lines.
The LCD is designed for a 6 o’clock viewing direction.
