This is a specification for LCD modules, including the product number, model, specification, size, etc.

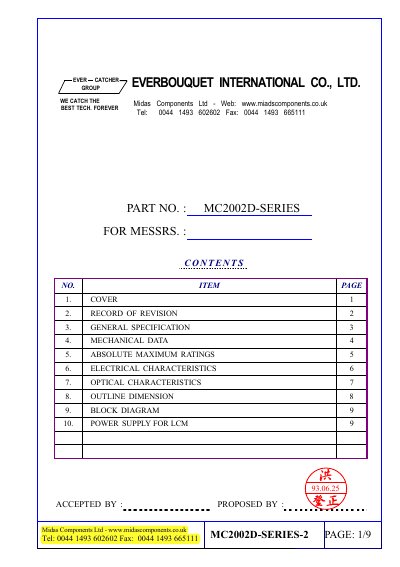

This datasheet describes the MC2002D series LCD modules manufactured by Midas Components. It includes general specifications, mechanical dimensions, absolute maximum ratings, electrical and optical characteristics, as well as wiring and block diagram information.
Key information includes module size, character layout, power supply requirements, temperature and humidity limits, viewing angles, contrast ratios, and recommended LCD driving voltages for various LCD types.
| Module size (max) | 116.0 W × 37.0 H × 14.0 T mm |
|---|---|
| Number of characters per line | 20 CH × 2 LINE |
| Power supply for logic | 0 – 6.0 V (VDD‑VSS) |
| LED backlight supply voltage | 6.0 V |
The recommended LCD driving voltage is VDD‑VO with a duty cycle of 1/16, typically around 4.2 V for TN type LCDs and 4.5 V for FSTN type LCDs.
The module measures 116.0 mm wide, 37.0 mm high, and up to 14.0 mm thick.
