MC2002E-FBLW-1 is a 20 character LCD module with a 5 x 7 dot character pattern.

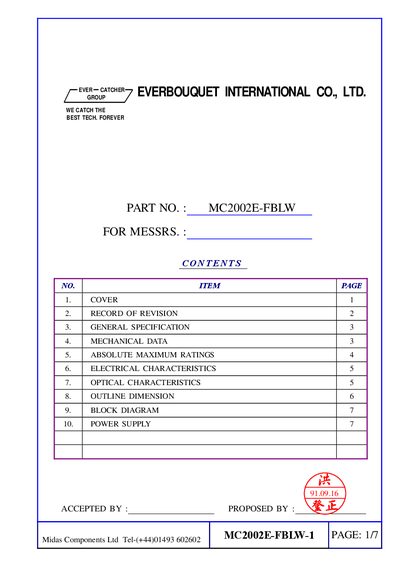

This manual covers the general specifications, mechanical data, and absolute maximum ratings for the Everbouquet MC2002E-FBLW LCD module. It includes detailed electrical and optical characteristics, outline dimensions, and a block diagram of the display circuitry.
Additional sections describe the power supply requirements for the logic and LED backlight, as well as environmental limits such as temperature and humidity. The document also lists pin connections for interfacing with the module.
| LCD type | FSTN negative transmissive |
|---|---|
| LED backlight color | White |
| Number of characters | 20 CH * 2 LINE |
| Module size | 149.0 W × 31.0 H mm |
| Dot size | 1.16 W × 1.55 H mm |
| Viewing direction | 6 o’clock |
| Power supply for logic | 0‑6.0 A |
| Power supply for LED | 6.0 A |
It uses an FSTN negative transmissive LCD type.
The LED backlight is white.
The module measures 149.0 mm wide by 31.0 mm high.
The specified temperature range is 0 °C to 50 °C.
