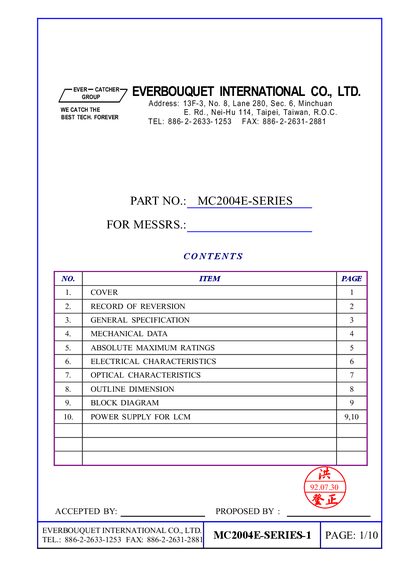

The document is about the technical specifications of the MC2004E series product by EVERBOUQUET INTERNATIONAL CO., LTD. The product is a liquid crystal module with various display characteristics and color options. The document includes information on mechanical data, absolute maximum ratings, and electrical characteristics of the product.
The MC2004E‑SERIES‑1 is a character LCD module from Everbouquet International. The document lists its general specifications, mechanical dimensions, absolute maximum ratings, and detailed electrical and optical parameters for designers and integrators.
Key data include a 20‑character‑by‑4‑line display, module size of 98 mm × 60 mm, LED and EL backlight options, and recommended power‑supply voltages for logic and backlight circuits.
| Number of characters per line | 20 CH * 4 LINE |
|---|---|
| Module size (W × H) | 98.0 mm × 60.0 mm |
| Effective area (W × H) | 76.0 mm × 252 mm |
| Character size (W × H) | 2.95 mm × 4.15 mm |
| Dot size (W × H) | 0.55 mm × 0.55 mm |
| Backlight type | LED BACKLIGHT (type LY) and EL BACKLIGHT (type E) |
| Logic power supply | Vpp‑Vss 6.0 V |
The logic power supply is specified as Vpp‑Vss 6.0 V.
Both LED backlight (type LY) and EL backlight (type E) are supported.
The module displays 20 characters per line across 4 lines.
The module measures 98.0 mm wide by 60.0 mm high.
