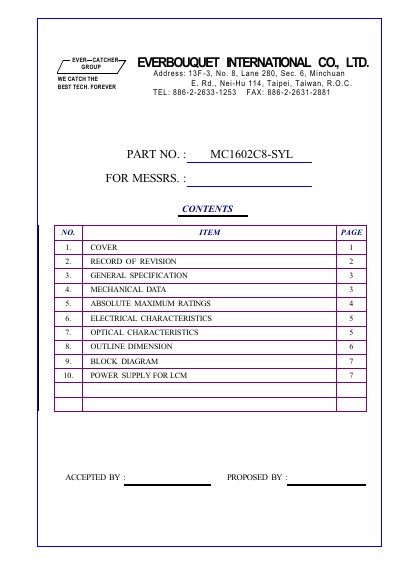

This is a specification sheet for a liquid crystal display model MC1602C8-SYL
The MC1602C8‑SYL is a 16‑character × 2‑line STN yellow‑green transflective LCD module designed for electronic devices that need simple alphanumeric displays. It operates with a 5.0 V supply and provides a viewing direction of 6 o’clock.
The datasheet details mechanical dimensions, electrical ratings, and optical characteristics, including module size (80 mm × 36 mm × 10 mm), character size (2.96 mm × 4.86 mm), and recommended driving voltage. Pin assignments and a block diagram are also provided for integration.
| Number of characters | 16 characters per line, 2 lines |
|---|---|
| Module size (W × H × T) | 80.0 mm × 36.0 mm × 10.0 mm (max) |
| Effective display area | 64.5 mm × 16.0 mm |
| Character pattern | 5 × 7 dots + cursor |
| Character size | 2.96 mm × 4.86 mm |
| Viewing direction | 6 o’clock |
| LCD type | STN yellow‑green transflective |
| LED backlight color | Yellow‑green |
| Supply voltage (VDD) | 5.0 V |
| Input high voltage (VIH) | 2.0 V |
| Input low voltage (VIL) | 0.8 V |
| Output high voltage (VOH) | 2.4 V |
| Output low voltage (VOL) | 0.4 V |
| Typical supply current (IDD) | 1.0 mA (typical) |
| Viewing angle | 30°–40° |
It can show 16 characters per line on two lines, for a total of 32 characters.
The module operates from a 5.0 V supply (VDD).
The display is oriented for viewing at the 6 o’clock position.
It uses an STN yellow‑green transflective LCD with a yellow‑green LED backlight.
