This document is about the technical parameters of mg1903a series products, including the product temperature, type, color, polarization type, backlight type and other information.

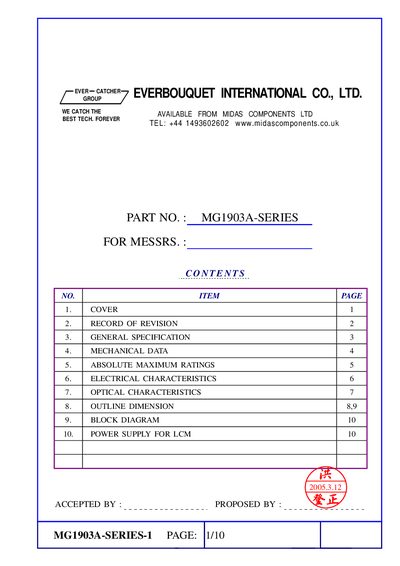

This datasheet provides detailed specifications for the Everbouquet MG1903A Series LCD module. It includes mechanical dimensions, electrical limits, and optical performance data intended for designers and integrators.
Key sections cover general specifications, mechanical data, absolute maximum ratings, electrical characteristics, optical characteristics, outline dimensions, interface pin connections, and a block diagram of the module.
| Number of dots | 192 W × 32 H |
|---|---|
| Module size | 116.0 mm × 37.0 mm |
| Effective area | 84.0 mm × 19.0 mm |
| Active area | 80.61 mm × 15.97 mm |
| Dot size | 0.39 mm × 0.47 mm |
| Power supply for LCD (Vss‑Vpp) | -0.3 V to 3.5 V |
| Input voltage range | -0.3 V to Vpp+0.3 V |
| LED backlight voltage | 6.0 V |
| Operating temperature (normal) | 0 °C to 50 °C |
| Operating temperature (wide) | up to 70 °C |
| Viewing angle | 30° to 40° |
The MG1903A Series uses an STN type LCD.
The LCD power supply voltage must be between -0.3 V and 3.5 V.
The display provides a viewing angle of 30° to 40°.
