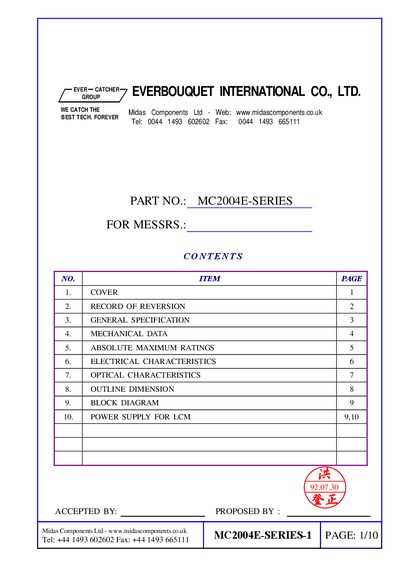

This document is a datasheet of LCD display.
This datasheet describes the MC2004E‑SERIES LCD module produced by EVERBOUQUET. It includes general specifications, mechanical data, absolute maximum ratings, electrical and optical characteristics, as well as outline dimensions and block diagrams.
The document also details power supply requirements for the LCD and its backlight, offering reference values for voltage, current, and recommended operating conditions.
| Number of characters | 20 CH × 4 LINE |
|---|---|
| Module size | 98.0 mm × 60.0 mm (max) |
| Effective area | 76.0 mm × 25.2 mm |
| Character pitch | 3.55 mm |
| Dot size | 0.55 mm × 0.55 mm |
| Input voltage (logic) | 220 V |
| Recommended LCD driving voltage | ≈ 5.0 V (±0.5 V) |
| Viewing angle (TN type) | 30° |
| Contrast ratio (TN type) | K = 2.0 |
The module measures 98.0 mm wide by 60.0 mm high (maximum dimensions).
The recommended LCD driving voltage is about 5.0 V, with a possible fluctuation of ±0.5 V per module.
The display can show 20 characters per line across 4 lines.
