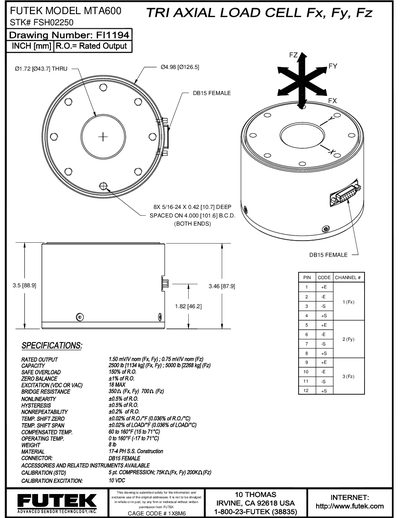

This document is the CAD drawing of DB15 FEMALE CAGE CODE # 1X8M6
The MTA600 is a tri‑axial load cell from Futek that measures forces in the X, Y, and Z directions. It features a DB15 female connector and a robust 17‑4 stainless‑steel construction.
This one‑page handbook lists the key electrical and mechanical specifications, calibration options, and environmental limits for the MTA600, making it a quick reference for engineers and technicians.
| Rated Output | 1.50 mV/V (Fx, Fy); 0.75 mV/V (Fz) |
|---|---|
| Safe Overload | 150% of rated output |
| Zero Balance | ±1% of rated output |
| Excitation Voltage | Up to 18 V (DC or AC) |
| Bridge Resistance | 350 Ω (Fx, Fy); 700 Ω (Fz) |
| Nonlinearity | 20.5% of rated output |
| Hysteresis | ±0.5% of rated output |
| Non‑repeatability | ±0.2% of rated output |
| Temperature Shift (Zero) | 0.02%/°F (0.036%/°C) |
| Temperature Shift (Span) | 0.02%/°F (0.036%/°C) |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 71 °C) |
| Operating Temperature Range | 0 °F to 160 °F (-17 °C to 71 °C) |
| Material | 17‑4 PH 5.8 stainless steel |
| Connector Type | DB15 female |
The MTA600 provides a rated output of 1.50 mV/V for the Fx and Fy channels and 0.75 mV/V for the Fz channel.
It uses a DB15 female connector for signal output.
The device operates from 0 °F to 160 °F (‑17 °C to 71 °C).
