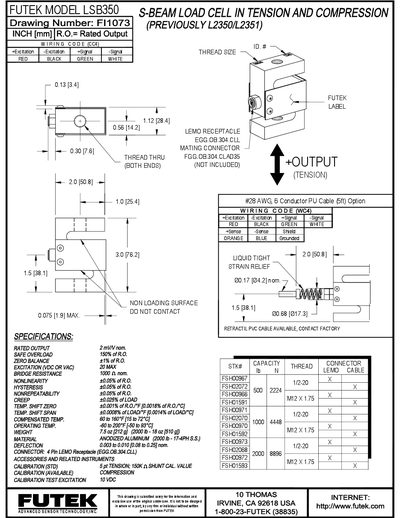

This document is about the LSB350 technical data of FUTEK, including product specifications, appearance size, connection method, wiring harness and other information.
The LSB350 is an S‑beam load cell designed for both tension and compression measurements. It replaces the earlier L2350/L2351 models and features an anodized aluminum body with a 4‑pin LEMO connector.
The handbook lists key specifications such as a 2 mV/V rated output, 150 % safe overload, and operating temperatures from 60 °F to 200 °F. Wiring codes (CC4 and WC4) and optional accessories are also described, along with calibration options for tension and compression.
| Rated Output | 2 mV/V nominal |
|---|---|
| Safe Overload | 150 % of rated output |
| Zero Balance | 41 % of rated output |
| Excitation Voltage | 20 V max (DC or AC) |
| Bridge Resistance | 1000 Ω nominal |
| Nonlinearity | 0.05 % of rated output |
| Hysteresis | 0.05 % of rated output |
| Operating Temperature | 60 °F to 200 °F (‑50 °C to 93 °C) |
| Weight | 75.02 g (2.0 oz) |
| Material | Anodized aluminum (or 17‑4PH stainless steel) |
| Deflection | 0.003 to 0.010 in (0.08 to 0.25 mm) |
| Connector | 4‑pin LEMO receptacle |
The LSB350 has a rated output of 2 mV/V nominal.
The load cell can safely overload up to 150 % of its rated output.
It uses a 4‑pin LEMO receptacle connector.
The device operates from 60 °F to 200 °F (‑50 °C to 93 °C).
