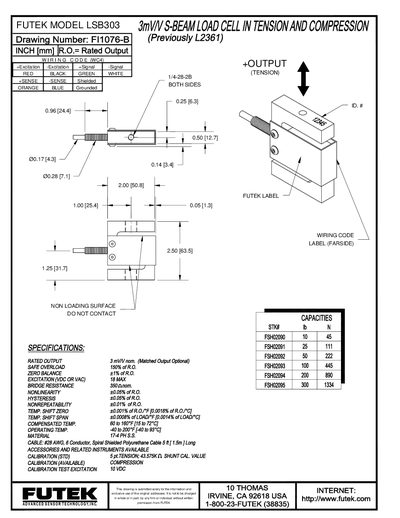

This drawing is a wiring diagram of LSB303 product, including product input and output interface, size and other information.
The LSB303 is a 3 mV/V S‑beam load cell designed for both tension and compression applications. The data sheet provides the drawing number, wiring code, and a full list of specifications including rated output, overload capacity, temperature limits, and material construction.
Key features include a rated output of 3 mV/V (matched optional), safe overload of 150 % of rated output, and a stainless‑steel (17‑4 PH) body. The included cable is a #28 AWG, 6‑conductor, spiral‑shielded polyurethane cable 1.5 m long, and calibration options are listed for both tension and compression.
| Rated Output | 3 mV/V nominal (matched optional) |
|---|---|
| Safe Overload | 150 % of rated output |
| Zero Balance | +1 % of rated output |
| Excitation (VDC or VAC) | 18 V max |
| Bridge Resistance | 350 Ω nominal |
| Nonlinearity | 0.05 % of rated output |
| Hysteresis | 0.05 % of rated output |
| Non‑repeatability | 0.01 % of rated output |
| Temperature Shift Zero | 40.00 % of R.O./°F (0.0018 %/°C) |
| Temperature Shift Span | 0.0008 % of load/°F (0.0014 %/°C) |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 72 °C) |
| Operating Temperature | -40 °F to 200 °F (‑40 °C to 93 °C) |
| Material | 17‑4 PH stainless steel |
| Calibration (STD) Tension | 5‑point, 43.575 k |
| Calibration Test Excitation | 10 VDC |
The rated output is 3 mV/V nominal, with a matched output option available.
It can safely overload up to 150 % of its rated output.
The load cell operates from –40 °F to 200 °F (‑40 °C to 93 °C).
