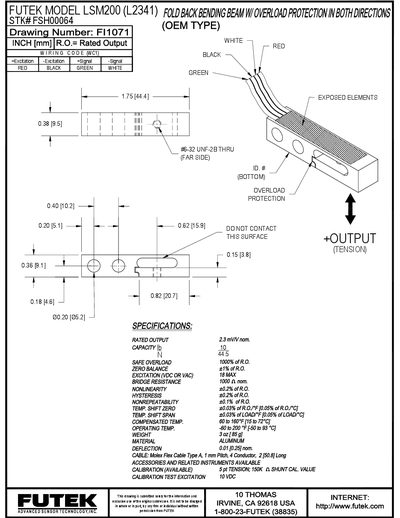

This document is the wiring diagram of FUTEK LSM200 (L2341)
The LSM200 (L2341) is a foil‑back bending beam load cell with overload protection in both directions. It offers a rated output of 23 mV/V, a capacity of 10 units, and a safe overload rating of 1000 % of the rated output. The sensor is built from aluminum, weighs 30 oz (85 g), and includes a Molex Flex Cable Type A with four conductors.
The device operates from –60 °F to 200 °F (‑50 °C to 93 °C) and is temperature‑compensated from 60 °F to 160 °F (15 °C to 72 °C). Calibration accessories and related instruments are available, and the sensor can be excited with up to 18 V (DC or AC).
| Rated Output | 23 mV/V nominal |
|---|---|
| Capacity | 10 |
| Safe Overload | 1000 % of R.O. |
| Zero Balance | ±1 % of R.O. |
| Excitation Voltage (max) | 18 V (DC or AC) |
| Bridge Resistance | 1000 Ω nominal |
| Nonlinearity | ±0.2 % of R.O. |
| Hysteresis | ±0.2 % of R.O. |
| Nonrepeatability | ±0.1 % of R.O. |
| Temperature Shift Zero | 0.03 % of R.O./°F (0.05 %/°C) |
| Temperature Shift Span | 0.03 % of LOAD/°F (0.05 %/°C) |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 72 °C) |
| Operating Temperature Range | -60 °F to 200 °F (-50 °C to 93 °C) |
| Weight | 30 oz (85 g) |
| Material | Aluminum |
| Deflection | 0.01 (0.25) nominal |
| Cable Type | Molex Flex Cable Type A, 1 mm pitch, 4‑conductor, 2 ft long |
The rated output is 23 mV/V nominal.
The sensor can be excited with up to 18 V, either DC or AC.
It is protected for overloads up to 1000 % of its rated output.
It operates from –60 °F to 200 °F (‑50 °C to 93 °C).
