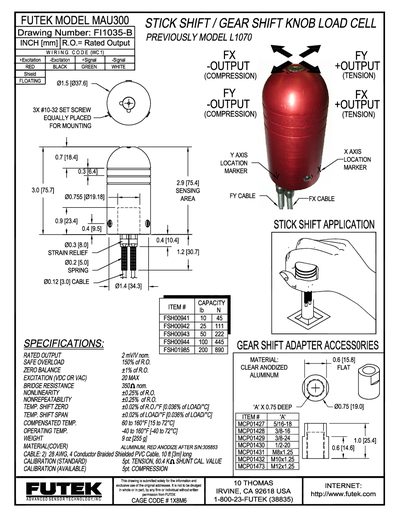

The MAU300 is a stick‑shift/gear‑shift knob load cell designed for compression and tension measurement. The sheet provides wiring diagrams, mounting details, and part numbers for easy integration.
Key specifications include rated output, overload rating, temperature compensation, and mechanical dimensions. Material construction, cable type, and calibration options are also listed, making the MAU300 suitable for a range of industrial applications.
| Rated Output | 2 mV/V (nominal) |
|---|---|
| Safe Overload | 150 % of rated output |
| Zero Balance | 11 % of rated output |
| Excitation Voltage | Up to 20 V DC or AC |
| Bridge Resistance | 3.6 kΩ (nominal) |
| Nonlinearity | 0.40 % of rated output |
| Operating Temperature | 40 °F to 160 °F (‑40 °C to 72 °C) |
| Weight | 9 oz (255 g) |
| Cover Material | Aluminum, red anodized |
| Cable | 28 AWG, 4‑conductor shielded PVC, 10 ft |
The MAU300 provides a nominal rated output of 2 mV/V.
It can safely handle overloads up to 150 % of its rated output.
The device operates from 40 °F to 160 °F (‑40 °C to 72 °C).
The load cell can be powered with up to 20 V DC or AC.
