The LSB352 is a S‑beam load cell designed for both tension and compression measurements with built‑in overload protection. It features a rated output of 3 mV/N and can be powered by either 18 VDC or VAC.

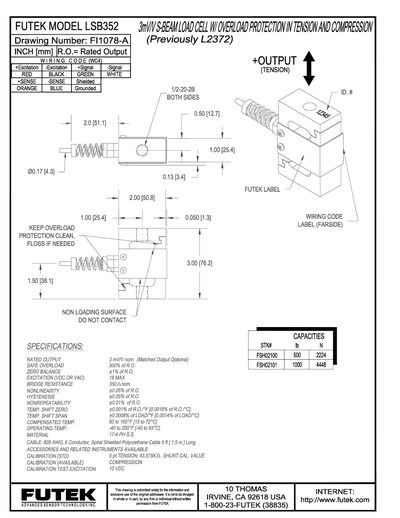

The sheet lists full technical specifications, including bridge resistance, nonlinearity, hysteresis, temperature compensation, and wiring codes. Calibration options for tension and compression are also noted, along with cable construction and accessory availability.
| Rated Output | 3 mV/N |
|---|---|
| Safe Overload | 500 % of R.O. |
| Zero Balance | +1 % of R.O. |
| Excitation Voltage | Up to 18 VDC or VAC |
| Bridge Resistance | 350 Ω (nominal) |
| Compensated Temperature Range | 60–160 °F (15–72 °C) |
| Operating Temperature | -40–200 °F (-40–93 °C) |
| Material | 174 PHS.S. |
The LSB352 provides a rated output of 3 mV per newton.
It can safely handle overloads up to 500 % of its rated output.
For tension, the wiring colors are RED, BLACK, GREEN, and WHITE.
The load cell can be excited with up to 18 VDC or VAC.
