The document describes a product with model LAU220, which is a digital display/bar graph type strain gauge. It has optional features such as CSG110 and digital display/bar graph, and is suitable for various applications. The weight of the product is 2 lbs.

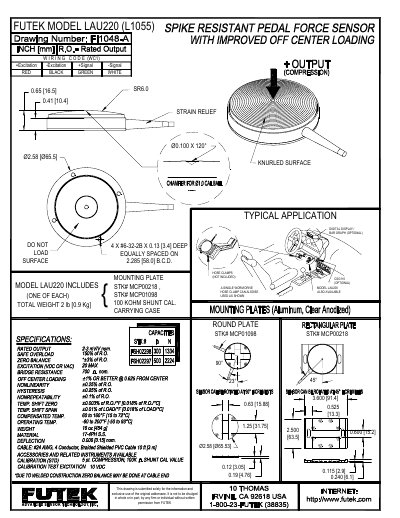

This manual covers the key technical data for the FUTEK LAU220 (model L1055), including dimensions, weight, and optional accessories such as hose clamps and a digital display/bar‑graph. It also details the mounting plate configuration and the required shunt calibration.
Installation guidance includes the wiring code (WC1) with color assignments for excitation and signal wires, as well as part numbers for mounting plates (MCP00218, MCP01098). The document lists optional components like the CSG110 worm‑drive hose clamp and notes that hose clamps are not included. This manual is written in Chinese.
| Total weight | 2 lb (0.9 Kg) |
|---|---|
| Mounting plate angle | 23°90° |
| Shunt calibration | 100 KΩ |
| Wiring code | WC1 |
| Excitation wire color | Red |
| Signal wire color | Green |
The LAU220 weighs 2 lb (0.9 Kg).
The wiring code for the LAU220 is WC1.
The excitation wire is red.
