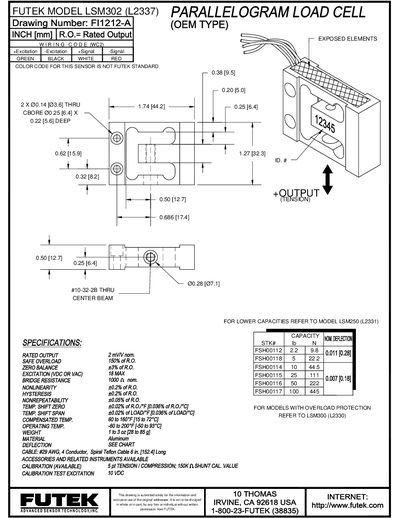

This document provides technical information of LSM302 (L2337), including its technical parameters, dimensions, packaging, etc., to help customers understand the specific information of the product.
The Futek LSM302 (L2337) is a parallel‑beam load cell with exposed elements and a non‑standard color code. The drawing number is Fl1212‑A (OEM TYPE) and the sensor uses a four‑wire connection with green, black, white, and red leads.
The datasheet lists key performance parameters such as a rated output of 2 mV/V nominal, a safe overload of 150 % of rated output, and an excitation voltage up to 18 V (DC or AC). It also provides temperature specifications (60 °F to 160 °F), weight (1 to 3 oz), and construction material (aluminum). Calibration accessories and related instruments are available for this model.
| Rated Output | 2 mV/V nominal |
|---|---|
| Safe Overload | 150 % of rated output |
| Zero Balance | 143 % of rated output |
| Bridge Resistance | 1000 Ω nominal |
| Nonlinearity | 10.2 % of rated output |
| Hysteresis | 120.2 % of rated output |
| Non‑repeatability | 40.05 % of rated output |
| Temperature Shift (Zero) | 0.036 % of R.O./°C |
| Temperature Shift (Span) | 0.036 % of LOAD/°C |
| Operating Temperature | 60 °F to 160 °F (15 °C to 72 °C) |
| Weight | 1 to 3 oz (28 to 85 gf) |
| Material | Aluminum |
The rated output is 2 mV/V nominal.
It operates from 60 °F to 160 °F (15 °C to 72 °C).
The load cell weighs between 1 and 3 oz (28 to 85 gf).
