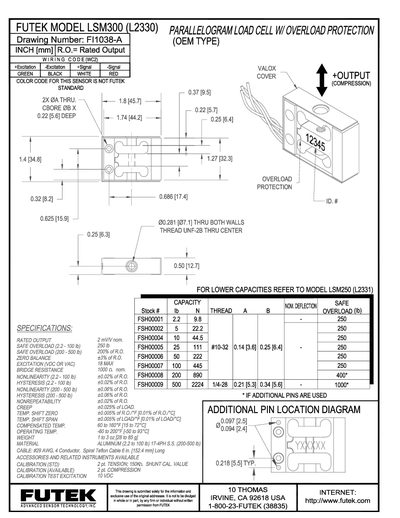

This document provides the drawing number, wiring code, and detailed specifications for the Futek LSM300 (L2330) parallelogram load cell with overload protection. It includes rated output, excitation limits, bridge resistance, material, cable type, and calibration information.
Additional information such as operating temperature range, weight, and available accessories and related instruments are also listed, helping users select appropriate installation and calibration setups.
| Rated Output | 2 mV/V nominal |
|---|---|
| Excitation Voltage | Up to 18 V (DC or AC) |
| Bridge Resistance | 1000 Ω |
| Operating Temperature | 60 to 200 °F (‑50 to 93 °C) |
| Weight | 1 to 3.02 lb (28 to 85 g) |
| Cable | #29 AWG, 4‑conductor spiral Teflon, 6 in long |
The rated output is 2 mV/V nominal.
The load cell can be excited with up to 18 V, either DC or AC.
It operates from 60 °F to 200 °F (‑50 °C to 93 °C).
