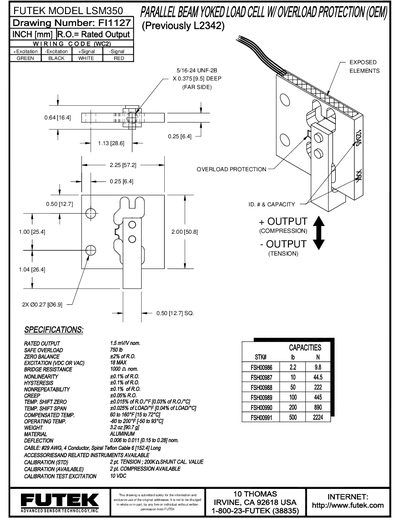

This document is a technical manual for Futek electronic products. It provides detailed information on the features and usage of its product LSM350.
The LSM350 is a compression/tension load cell with a rated output of 1.5 mV/V and a safe overload capacity of 750 % of full scale. It offers high accuracy with non‑linearity, hysteresis, non‑repeatability and creep each limited to 0.1 % of rated output or less. The cell operates from 60 °F to 160 °F (15 °C to 72 °C) and weighs only 3.2 oz.
The wiring code (WC2) uses green and black for excitation (+/–) and white and red for signal (+/–). The device can be powered by up to 18 VDC or VAC, and includes overload protection for parallel‑beam yoke configurations. Calibration accessories and Teflon‑spun cable are available from Futek.
| Rated Output | 1.5 mV/V nom. |
|---|---|
| Safe Overload | 750 % of full scale |
| Zero Balance | 142 % of R0 |
| Excitation Voltage | Up to 18 VDC or VAC |
| Bridge Resistance | 1000 Ω nominal |
| Nonlinearity | ≤ 0.1 % of R0 |
| Hysteresis | ≤ 0.1 % of R0 |
| Non‑repeatability | ≤ 0.1 % of R0 |
| Creep | ≤ 0.05 % of R0 |
| Temp. Shift Zero | 0.015 % of R0/°F (0.03 %/°C) |
| Temp. Shift Span | 0.025 % of load/°F (0.04 %/°C) |
| Operating Temperature | 60 °F to 160 °F (15 °C to 72 °C) |
| Weight | 3.2 oz (90.7 gf) |
| Material | Aluminum |
| Deflection | 0.006 to 0.011 in (0.15 to 0.28 mm) nominal |
| Cable | #29 AWG, 4‑conductor spiral Teflon, 6 ft long |
The LSM350 has a rated output of 1.5 mV/V nominal.
It can be powered with up to 18 VDC or VAC.
The cell operates from 60 °F to 160 °F (15 °C to 72 °C).
Excitation uses green (+) and black (–); signal uses white (+) and red (–).
