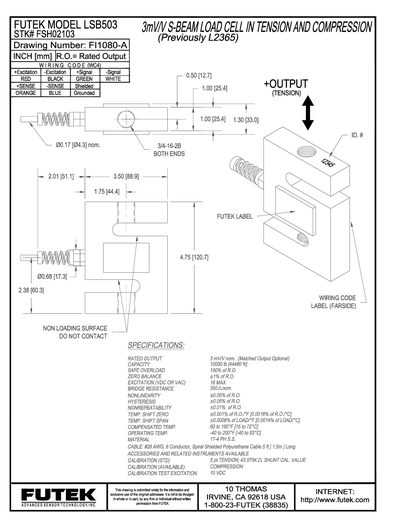

The LSB503 is a 3 mV/V S‑beam load cell designed for both tension and compression applications. It offers a rated output of 3 mV/V (nominal) and a capacity of 10 kN, with a safe overload rating of 150 % of the rated output.
Key features include a bridge resistance of 350 Ω, low hysteresis and nonlinearity (≈0.05 % of rated output), and temperature compensation from 60 °F to 160 °F. The cell is constructed from 17‑4 PH stainless steel and comes with a 5 ft shielded polyurethane cable.
| Rated Output | 3 mV/V nominal |
|---|---|
| Capacity | 10 kN |
| Safe Overload | 150 % of R.O. |
| Zero Balance | 21 % of R.O. |
| Excitation Voltage | Up to 18 V (DC or AC) |
| Bridge Resistance | 350 Ω nominal |
| Nonlinearity | 0.05 % of R.O. |
| Hysteresis | 0.05 % of R.O. |
| Nonrepeatability | 0.01 % of R.O. |
| Temperature Shift (Zero) | 0.001 % of R.O./°F |
| Temperature Shift (Span) | 0.0008 % of LOAD/°F |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 72 °C) |
| Operating Temperature Range | 40 °F to 200 °F (‑40 °C to 93 °C) |
| Material | 17‑4 PH stainless steel |
| Cable | #28 AWG, 6‑conductor, spiral shielded polyurethane, 5 ft (1.5 m) |
The rated output is 3 mV/V nominal.
The load cell can measure up to 10 kN.
An excitation voltage up to 18 V (DC or AC) is supported.
It operates from 40 °F to 200 °F (‑40 °C to 93 °C).
