This is the data sheet of LSM325

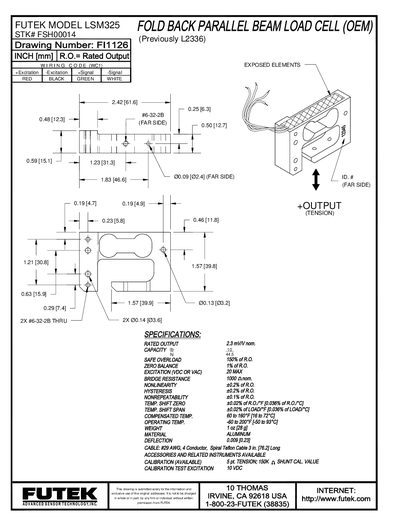

The LSM325 is a fold‑back parallel‑beam load cell designed for tension measurement up to 10 lb. The drawing includes wiring code, cable details, and mechanical dimensions for easy integration.
The datasheet lists electrical and mechanical specifications such as rated output (2.3 mV/V), bridge resistance (1000 Ω), temperature compensation range (60‑160 °F), and operating temperature (‑60 to 200 °F). Calibration options and accessory information are also provided.
| Capacity | 10 lb |
|---|---|
| Zero Balance | 1 % of rated output |
| Excitation Voltage | 20 V (DC or AC) max |
| Compensated Temperature Range | 60‑160 °F (16‑72 °C) |
| Operating Temperature | -60 to 200 °F (-50 to 93 °C) |
| Weight | 1 oz (28 g) |
| Material | Aluminum |
| Deflection | 0.009 in (0.23 mm) |
The load cell can be excited with up to 20 V DC or AC.
It operates from –60 °F to 200 °F (‑50 °C to 93 °C).
The load cell weighs 1 oz (28 g).
