This document is a parts list for the FUTEK LAU200 (L1050) manual pressure sensor, including part number, part name, part quantity, part size, and other information.

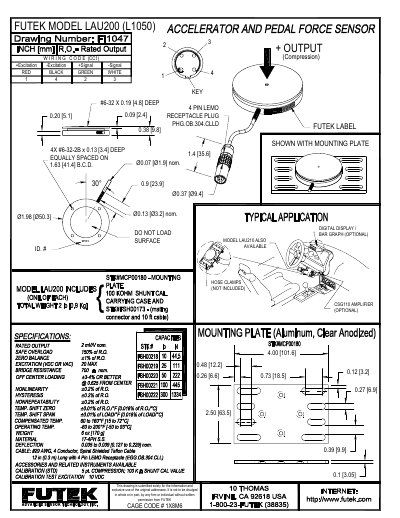

The LAU200 (L1050) sensor data sheet provides key mechanical dimensions, wiring information, and optional accessories. It lists the sensor's nominal diameters, mounting hole sizes, and the required deep‑hose clamps (not included).\n\nWiring details include the CC1 wiring code, excitation and signal color assignments, and a 4‑pin LEMO compression output connector. Optional items such as a digital display/bar‑graph, a CSG110 amplifier, and deep‑hose clamps are also noted. This manual is written in Chinese.
| Model | LAU200 (L1050) |
|---|---|
| Wiring Code | CC1 |
| Excitation Color | RED BLACK |
| Signal Color | GREEN |
| Output Connector | 4‑pin LEMO (compression) |
The wiring code for the LAU200 sensor is CC1.
It uses a 4‑pin LEMO compression connector.
