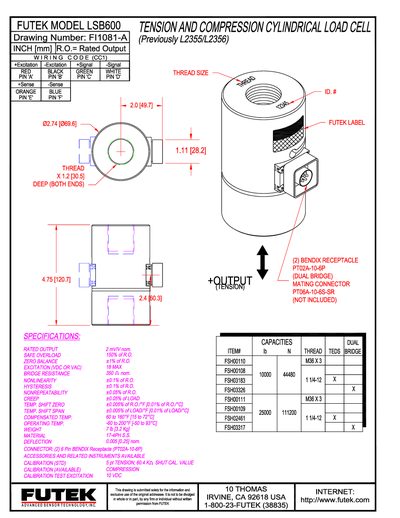

Futek LSB600 Load Cell Drawing

About this manual

The LSB600 is a tension and compression cylindrical load cell from Futek, designed for precise force measurement. This single‑page document provides the drawing number, wiring diagram, and key mechanical details.

The drawing includes the wiring code (RED, BLACK, GREEN, WHITE for excitation and signal), thread size specifications, and a table of capacity items for various part numbers. Contact information for Futek and a reference to the drawing number (F11081‑A) are also listed.

What's inside

• Drawing Number
• Wiring Code
• Load Cell Type
• Thread Size
• Capacities
• Bridge Connector
• Manufacturer Information

Specifications

Frequently asked questions

What is the drawing number for the LSB600?

The drawing number is F11081‑A, previously listed as L2355/L2356.

What are the wiring colors for the excitation and signal connections?

The +Excitation wire is RED, -Excitation is BLACK, +Signal is GREEN, and -Signal is WHITE.

Which thread size is used for the LSB600 load cell?

One of the listed thread sizes is M36X3.

What is the capacity of part number FSHO0108?

Part number FSHO0108 has a capacity of 10 000 (units not specified).
