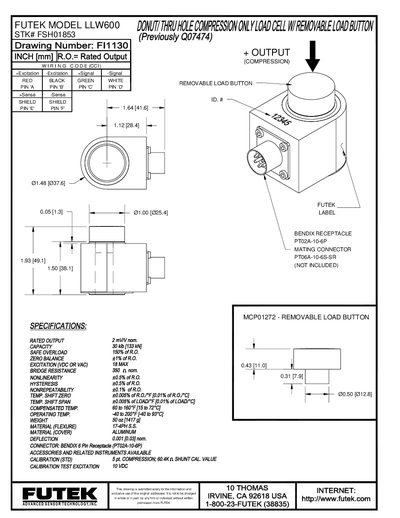

This document provides information about the BENDIX RECEPTACLE PT02A-10-6P MATING CONNECTOR PT06A-10-6S-SR (not included) removable load button.
The LLW600 is a compression‑only load cell designed for donut or thru‑hole mounting. It offers a rated output of 2 mV/V, a capacity of 30 kN (133 kN), and a safe overload rating of 150 % of the rated output. The cell features a removable load button and a Bendix 6‑pin receptacle for wiring.
Electrical characteristics include excitation up to 18 V (DC or AC), bridge resistance of 350 Ω, and specifications for nonlinearity, hysteresis, and temperature shift. The device operates from 40 °F to 200 °F (‑40 °C to 93 °C) and is constructed from 17‑4PH stainless steel flexure and an aluminum cover. Calibration accessories and related instruments are available from Futek.
| Rated Output | 2 mV/V nominal |
|---|---|
| Capacity | 30 kb (133 kN) |
| Safe Overload | 150 % of R.O. |
| Zero Balance | 21 % of R.O. |
| Excitation (VDC or VAC) | 18 V max, 0.43 V/11.0 % (example) |
| Bridge Resistance | 350 Ω nominal |
| Nonlinearity | 40.5 % of R.O. |
| Hysteresis | 20.5 % of R.O. |
| Nonrepeatability | 40.1 % of R.O. |
| Temperature Shift (Zero) | 0.005 % of R.O. per °F (0.01 % per °C) |
| Temperature Shift (Span) | 0.005 % of load per °F (0.01 % per °C) |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 72 °C) |
| Operating Temperature | 40 °F to 200 °F (‑40 °C to 93 °C) |
| Weight | 50.07 lb (1417 g) |
| Flexure Material | 17‑4PH stainless steel |
| Cover Material | Aluminum |
| Deflection | 0.001 in (0.03 mm) nominal |
| Connector | Bendix 6‑pin receptacle (PTO2A‑10‑6P) |
The rated output is 2 mV/V nominal.
The load cell can measure up to 30 kb (133 kN).
It uses a Bendix 6‑pin receptacle (part number PTO2A‑10‑6P).
The device operates from 40 °F to 200 °F (‑40 °C to 93 °C).
