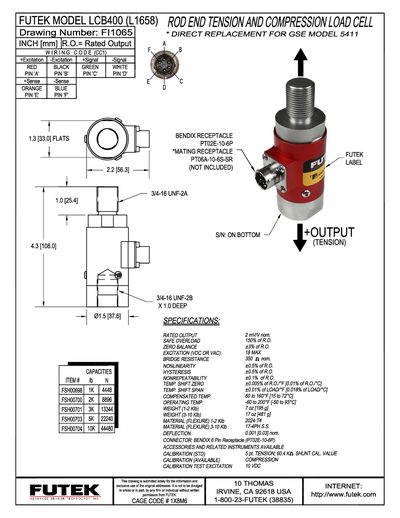

The LCB400(L1658) is a rod‑end tension and compression load cell that serves as a direct replacement for the GSE Model 5411. It features a BENDIX 6‑pin receptacle and is supplied with wiring codes for excitation and signal connections.
The manual lists the electrical and mechanical specifications, including rated output, safe overload, temperature ranges, and material details. It also describes available accessories, calibration procedures, and the connector type used for installation.
| Rated Output | 2 mV nominal |
|---|---|
| Safe Overload | 150 % of R.O. |
| Zero Balance | 3 % of R.O. |
| Excitation (VDC or VAC) | 18 V max |
| Bridge Resistance | 350 Ω |
| Nonlinearity | 0.5 % of R.O. |
| Hysteresis | +0.5 % of R.O. |
| Nonrepeatability | 40.1 % of R.O. |
| Temperature Shift Zero | 0.005 % of R.O./°F |
| Temperature Shift Span | 0.01 % of LOAD/°F |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 72 °C) |
| Operating Temperature | -60 °F to 200 °F (-50 °C to 93 °C) |
| Weight | 3‑10 lb |
| Material | Flexure 17‑4PH |
| Deflection | 0.001‑0.03 % nominal |
The rated output is 2 mV nominal.
It uses a BENDIX 6‑pin receptacle (PTO2E-10-6P).
The safe overload is 150 % of the rated output.
The load cell operates from –60 °F to 200 °F (–50 °C to 93 °C).
