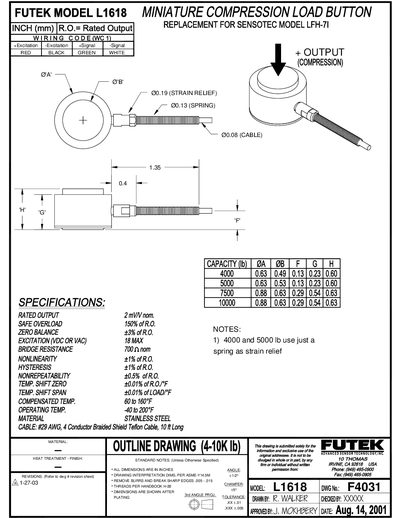

The document is about a drawing of a product. It contains dimensions and tolerances of the product.
The L1618 is a miniature compression load button designed for force measurement applications. It features a stainless‑steel body, a #29 AWG four‑conductor braided shield Teflon cable, and a rated output of 2 mV nominal.
Key specifications include a safe overload of 150 % of rated output, zero balance of 43 % of RO, excitation voltage up to 18 V (DC or AC), nonlinearity and hysteresis of 1 % of RO, and an operating temperature range from –40 °F to 200 °F.
| Rated Output | 2 mV nominal |
|---|---|
| Safe Overload | 150 % of R.O. |
| Zero Balance | 43 % of RO |
| Excitation (max) | 18 V |
| Nonlinearity | 1 % of RO |
| Hysteresis | 1 % of RO |
| Nonrepeatability | 0.5 % of RO |
| Temp. Shift Zero | 20.01 % of RO/°F |
| Temp. Shift Span | 0.01 % of LOAD/°F |
| Compensated Temperature | 60 °F to 160 °F |
| Operating Temperature | -40 °F to 200 °F |
| Material | Stainless steel |
| Cable | #29 AWG, 4‑conductor braided shield Teflon, 10 ft |
The rated output is 2 mV nominal.
The device can be excited with up to 18 V (DC or AC).
It operates from –40 °F to 200 °F.
The load button is made of stainless steel.
