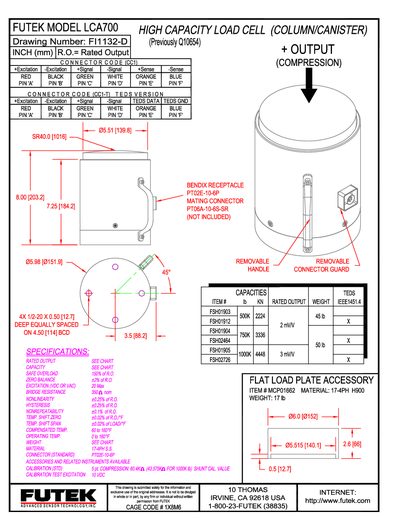

The Futek LCA700 is a high‑capacity column/canister load cell designed for demanding force measurement applications. It features a robust 17‑4PH stainless‑steel construction, a rated output that can be referenced in the accompanying chart, and a maximum excitation voltage of 20 V.
The device uses a standard 5‑pin connector (PTO2E‑10‑6P) with defined pin assignments for excitation, signal, and TEDS data. Calibration options include standard compression with a 60.4 kN range, and the load cell offers a bridge resistance of 350 Ω, nonlinearity of 40.25 % of RO, hysteresis of 10.25 % of RO, and an operating temperature range from 0 °F to 160 °F.
| Excitation Voltage (max) | 20 V |
|---|---|
| Weight | 17 lb |
| Bridge Resistance | 350 Ω |
| Nonlinearity | 40.25 % of RO |
| Hysteresis | 10.25 % of RO |
| Non‑repeatability | 401 % of RO |
| Operating Temperature | 0 °F to 160 °F |
| Material | 17‑4PH stainless steel |
The LCA700 can be powered with up to 20 V excitation.
The load cell weighs 17 lb.
The bridge resistance is 350 Ω.
The 5‑pin connector assigns RED to +Excitation, BLACK to –Excitation, GREEN to +Signal, WHITE to –Signal, and ORANGE to TEDS Data.
