This is a technical manual that mainly introduces the characteristics of the LCF650 (L2900) product, including electrical connection, size, weight, etc.
The LCF650 (also referenced as L2900) is a low‑profile universal pancake load cell designed for precision force measurement. It offers a capacity of 250 kN, a rated output of 4 mV/V, and a safe overload rating of 150 % of full scale.

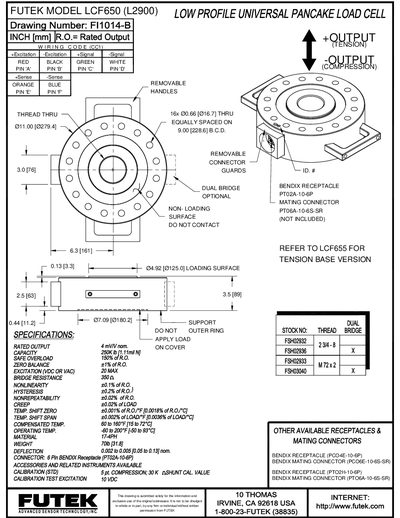

The manual includes a wiring diagram with a 6‑pin BENDIX receptacle, detailed electrical specifications such as bridge resistance (350 Ω) and excitation limits (20 V max), and information on accessories, calibration procedures, and temperature compensation.
| Rated Output | 4 mV/V |
|---|---|
| Capacity | 250K Ib |
| Safe Overload | 150% of RO |
| Excitation Voltage | 20 V max (DC or AC) |
| Bridge Resistance | 350 Ω |
| Nonlinearity | 0.1% of RO |
| Hysteresis | 0.2% of RO |
| Weight | 701 g |
| Connector Type | 6‑pin BENDIX receptacle (PT02A-10-6P) |
The LCF650 has a rated output of 4 mV/V.
The load cell can be excited with up to 20 V (DC or AC).
It uses a 6‑pin BENDIX receptacle, part number PT02A-10-6P.
