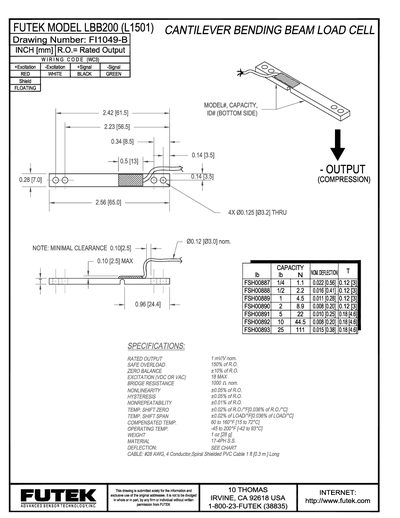

The Futek LBB200 (L1501) is a cantilever bending‑beam load cell designed for precise force measurement. The drawing provides the model number, capacity options, and wiring code for proper installation.
Key specifications such as rated output, excitation limits, temperature ranges, and mechanical details are listed, along with cable information and material construction. This sheet serves as a quick reference for engineers selecting and integrating the load cell into their systems.
| Rated Output | tmV/V nominal |
|---|---|
| Safe Overload | 150% of rated output |
| Zero Balance | 210% of rated output |
| Excitation Voltage | up to 18 V DC or AC |
| Bridge Resistance | 1000 Ω nominal |
| Nonlinearity | 0.40% of rated output |
| Hysteresis | 0.10% of rated output |
| Non‑repeatability | 0.40% of rated output |
| Temperature Shift (Zero) | 0.40% of R.O./°F (0.036%/°C) |
| Temperature Shift (Span) | 0.40% of load/°F (0.036%/°C) |
| Compensated Temperature Range | 60 to 160 °F (15 to 72 °C) |
| Operating Temperature Range | 45 to 200 °F (‑42 to 93 °C) |
| Weight | 1 oz (28 g) |
| Material | 17‑4PH stainless steel |
| Cable | #28 AWG, 4‑conductor, spiral‑shielded PVC, 1 ft |
The rated output is specified as tmV/V nominal.
The load cell can be powered with up to 18 V DC or AC.
It operates from 45 °F to 200 °F (‑42 °C to 93 °C).
The load cell body is made of 17‑4PH stainless steel.
