LCF505 is an electrical connector produced by Futek. It has a dual bridge option and a removable connector guard.

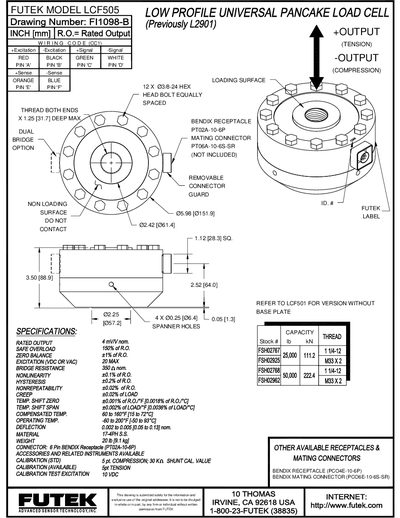

This handbook describes the Futek LCF505 low‑profile universal pancake load cell, including its mechanical dimensions, wiring configuration, and available accessories. Key specifications such as capacity, rated output, bridge resistance, and temperature performance are listed.
The document also outlines calibration options, connector types, and safety information, helping users integrate the load cell into measurement systems with proper excitation and signal wiring.
| Excitation Voltage (max) | 20 V |
|---|---|
| Bridge Resistance | 350 Ω |
| Nonlinearity | 20.1% of R.O. |
| Hysteresis | 20.2% of R.O. |
| Nonrepeatability | 40.02% of R.O. |
| Operating Temperature | -60°F to 200°F (‑50°C to 93°C) |
| Weight | 20 lb (9.1 kg) |
The maximum excitation voltage is 20 V (DC or AC).
It operates from –60 °F to 200 °F (‑50 °C to 93 °C).
The load cell weighs 20 lb (9.1 kg).
