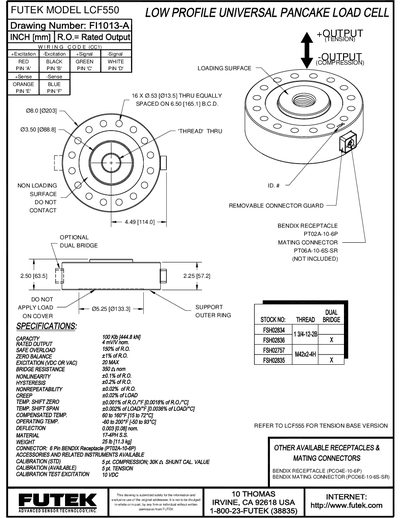

This drawing is the wiring diagram of FUTEK LCF550, which includes the connection instructions and the connector type
The LCF550 is a low‑profile universal pancake load cell designed for precise force measurement in a compact form factor. This handbook outlines its mechanical dimensions, connector layout, and optional dual‑bridge configuration.
Key electrical specifications such as rated output, excitation limits, bridge resistance, and temperature compensation are listed, along with recommended calibration procedures and available mating connectors.
| Rated Output | 4 mV/V nominal |
|---|---|
| Safe Overload | 150% of rated output |
| Zero Balance | 21% of rated output |
| Excitation Voltage | Up to 20 V DC or AC |
| Bridge Resistance | 350 Ω nominal |
| Nonlinearity | 0.401% of rated output |
| Hysteresis | 0.202% of rated output |
| Non‑repeatability | 0.4002% of rated output |
| Creep | 0.4002% of load |
| Temperature Shift (Zero) | 0.001% of R.O./°F |
| Temperature Shift (Span) | 0.002% of LOAD/°F |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 72 °C) |
| Operating Temperature Range | -60 °F to 200 °F |
| Weight | 25 lb (11.3 kg) |
| Connector Type | 6‑pin BENDIX Receptacle (PT02A-10-6P) |
The LCF550 has a rated output of 4 mV/V nominal.
The load cell can be excited with up to 20 V DC or AC.
It can safely handle an overload of 150 % of its rated output.
The device operates from –60 °F to 200 °F.
