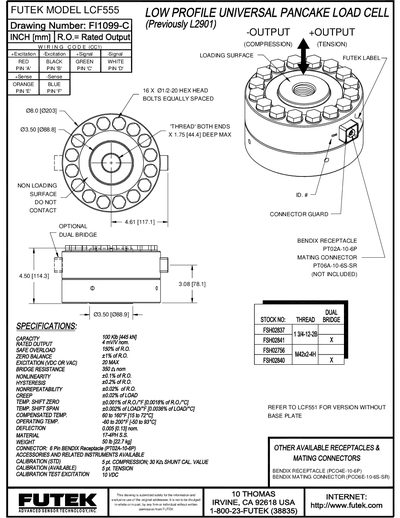

The FUTEK LCF555 is a low‑profile universal pancake load cell designed for precise force measurement. It features a compact design, a 6‑pin Bendix connector, and optional dual‑bridge configurations.
The datasheet lists key performance parameters such as a 100 kN capacity, 4 mV/V rated output, and temperature‑compensated operation from –60 °F to 200 °F. Additional information includes calibration options, connector part numbers, and available accessories.
| Capacity | 100 kN [445 kN] |
|---|---|
| Rated Output | 4 mV/V nominal |
| Safe Overload | 150 % of rated output |
| Zero Balance | 21 % of rated output |
| Excitation Voltage | 20 V (DC or AC) max |
| Bridge Resistance | 350 Ω nominal |
| Operating Temperature | -60 °F to 200 °F (‑50 °C to 93 °C) |
| Connector Type | 6‑pin Bendix receptacle (PT02A‑10‑6P) |
The LCF555 has a rated output of 4 mV/V nominal.
The load cell can be excited with up to 20 V, either DC or AC.
It operates from –60 °F to 200 °F (‑50 °C to 93 °C).
It uses a 6‑pin Bendix receptacle, part number PT02A‑10‑6P.
