This is a technical manual for a BENDIX RECEPTACLE PT02A-10-6P MATING CONNECTOR PT06A-10-6S-SR (NOT INCLUDED) REMOVABLE LOAD BUTTON product

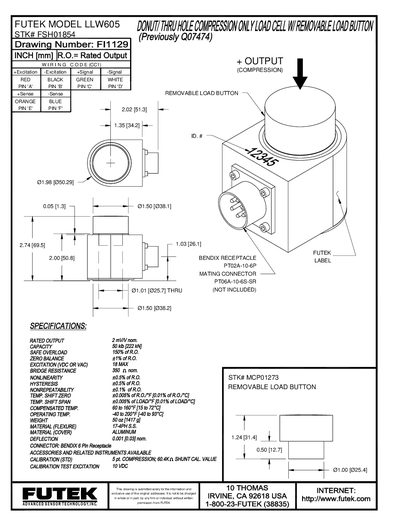

The FUTEK LLW605 is a donut/thru‑hole compression‑only load cell featuring a removable load button and a 6‑pin BENDIX connector. This handbook provides wiring information, mechanical dimensions, and performance specifications for accurate force measurement.
Key specifications include a rated output of 2 mV/V, a capacity of 50 kN, and an operating temperature range from –40 °F to 200 °F. The document also lists calibration procedures, material construction, and available accessories such as compatible receptacles and mounting hardware.
| Rated Output | 2 mV/V nominal |
|---|---|
| Capacity | 50 kN (222 KN) |
| Safe Overload | 150 % of rated output |
| Excitation Voltage (max) | 18 V DC or AC |
| Bridge Resistance | 350 Ω nominal |
| Operating Temperature | -40 °F to 200 °F (‑40 °C to 93 °C) |
| Connector Type | BENDIX 6‑pin receptacle |
| Weight | 50 oz (1417 g) |
The LLW605 has a rated output of 2 mV/V nominal.
The load cell can be excited with up to 18 V, either DC or AC.
It operates from –40 °F to 200 °F (‑40 °C to 93 °C).
