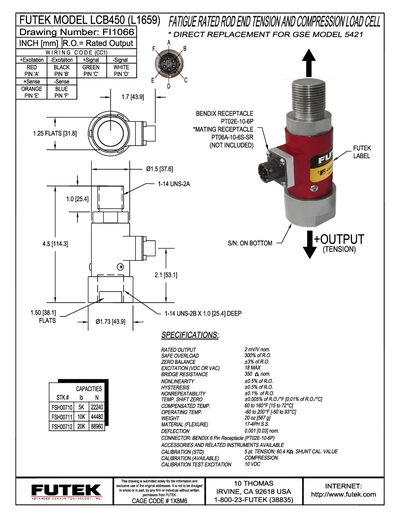

The LCB450 is a fatigue‑rated rod‑end tension and compression load cell with a nominal rated output of 2 mV/V. It features a safe overload capacity of 300 % of rated output, zero balance of 23 % of R.O., and a bridge resistance of 350 Ω. The cell operates from –60 °F to 200 °F and is built from 17‑4PH stainless‑steel flexure.
The device uses a BENDIX 6‑pin receptacle (PTO2E-10-6P) for wiring, with a standard wiring code for excitation and signal pins. Calibration options include tension and compression standards, and the leaflet lists available accessories and related instruments.
| Rated Output | 2 mV/NV nominal |
|---|---|
| Safe Overload | 300 % of R.O. |
| Zero Balance | 23 % of R.O. |
| Excitation (VDC or VAC) Max | 18 V |
| Bridge Resistance | 350 Ω nominal |
| Nonlinearity | 105 % of R.O. |
| Hysteresis | 20.5 % of R.O. |
| Nonrepeatability | 10.1 % of R.O. |
| Temperature Shift Zero | 20.005 % of R.O., °F |
| Compensated Temperature Range | 60 °F to 160 °F (15 to 72 °C) |
| Operating Temperature | -60 °F to 200 °F (-50 to 93 °C) |
| Weight | 20 oz (567 g) |
| Material (Flexure) | 17‑4PH stainless steel |
| Deflection | 0.001 {0.03} nominal |
| Connector | BENDIX 6‑pin receptacle (PTO2E-10-6P) |
The rated output is 2 mV/NV nominal.
The excitation voltage can be up to 18 V (DC or AC).
It uses a BENDIX 6‑pin receptacle (part number PTO2E-10-6P).
