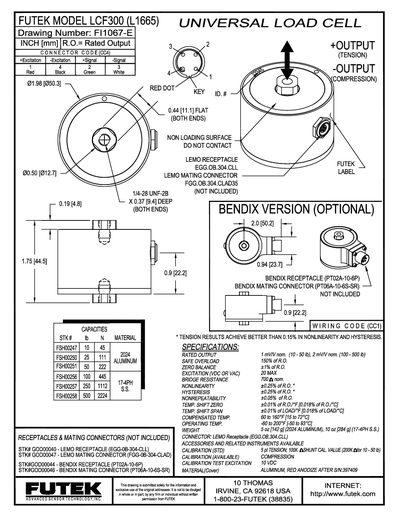

This document describes the Futek LCF300 (L1665) universal load cell, including its mechanical dimensions, wiring code, and connector codes. It lists the drawing number (Fl1067‑E) and notes that certain connectors are not included with the load cell.
Key specifications such as rated output, safe overload, zero balance, bridge resistance, nonlinearity, hysteresis, temperature compensation, and operating temperature are detailed. The manual also references available LEMO and Bendix receptacles and mating connectors, as well as related accessories and calibration parts.
| Safe Overload | 150 % of rated output |
|---|---|
| Zero Balance | 41 % of R.O. |
| Hysteresis | ≤ 0.15 % of R.O. |
| Nonrepeatability | ≤ 0.05 % of R.O. |
| Temperature Shift (Zero) | 40.01 % of R.O./°F (0.018 % of R.O./°C) |
| Operating Temperature | -60 °F to 200 °F (‑50 °C to 93 °C) |
| Weight | 5 oz (142 g) aluminum, 10 oz (284 g) 17‑4PH stainless steel |
The load cell can be fitted with LEMO receptacles and mating connectors or optional Bendix receptacles and mating connectors; none are included with the unit.
The device can tolerate a safe overload of up to 150 % of its rated output.
It operates from –60 °F to 200 °F (‑50 °C to 93 °C).
