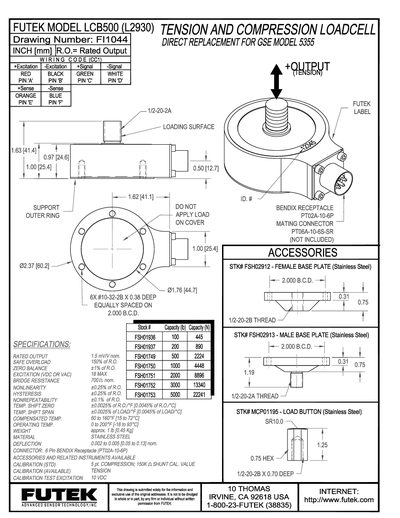

The document describes the Futek LCB500 (L2930) tension and compression load cell, including its wiring code, rated output, bridge resistance, and key performance specifications such as nonlinearity, hysteresis, and temperature shift. It also lists the material, dimensions, and connector type used for the sensor.
Additional sections cover available accessories (female and male base plates, load button), calibration options, operating temperature range, and weight. Contact information for Futek and drawing numbers are provided for reference.
| Rated Output | 5 mV/V |
|---|---|
| Bridge Resistance | 700 Ω |
| Nonrepeatability | 0.20% of R.O. |
| Operating Temperature | 0 to 200°F (-18 to 93°C) |
| Weight | approx. 1 lb (0.45 kg) |
| Connector Type | 6‑Pin Bendix Receptacle (PT02A‑10‑6P) |
The wiring uses RED for +Excitation, BLACK for –Excitation, GREEN for +Signal, WHITE for –Signal, ORANGE for +Sense, and BLUE for –Sense.
The load cell operates from 0 °F to 200 °F (‑18 °C to 93 °C).
It uses a 6‑pin Bendix receptacle, part number PT02A‑10‑6P.
