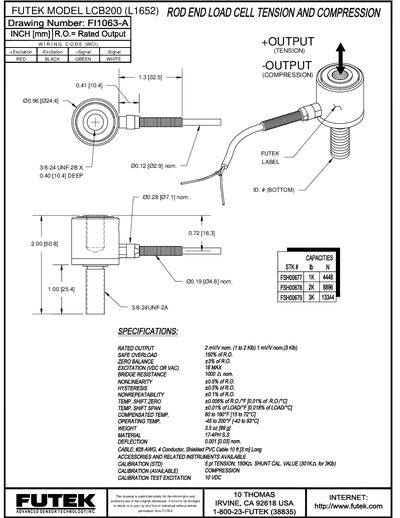

The document is about the FUTEK model LCB200 (L1652) product. It includes detailed information such as product dimensions, wiring code, and label.
The LCB200 (L1652) is a compact sensor from FUTEK designed for precise measurement applications. This manual supplies essential physical and electrical details needed for installation.
Key data include the sensor's overall dimensions, thread size, and the wiring color code for excitation, signal, and output connections. The information is intended for engineers and technicians integrating the sensor into their systems.
| Length | 2.00 |
|---|---|
| Thread size | 3/8-24 UNF-2B |
| Wiring code | Excitation RED BLACK, Signal GREEN, Output WHITE |
Excitation is RED and BLACK, the signal line is GREEN, and the output line is WHITE.
The sensor uses a 3/8-24 UNF-2B thread.
