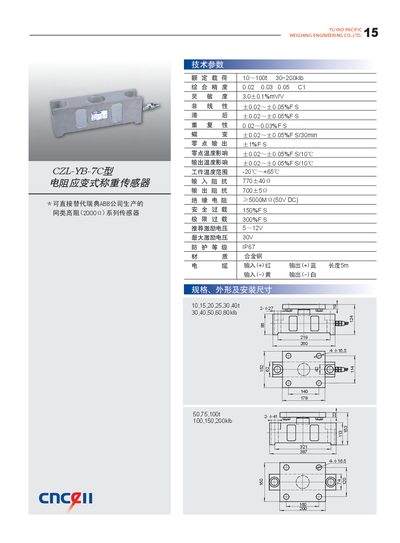

The document provides specifications, dimensions, and installation dimensions of CNCELLS CZL-YB-7C strain gauge load cell. It also describes the features and characteristics of the load cell, including rated load, accuracy, sensitivity, nonlinearity, hysteresis, repeatability, creep, zero output, zero temperature influence, output temperature influence, operating temperature range, input impedance, output impedance, insulation resistance, overload limit, excitation voltage, and protection level.
This manual presents the technical specifications of the Yuyao Pacific CZL-YB-7C resistance strain weight sensor. It lists the rated load, accuracy, sensitivity, non‑linearity, hysteresis, repeatability, temperature influences and the electrical parameters such as impedance and excitation voltage.
Additional details include the operating temperature range, IP67 protection rating, and material construction. The document is intended for engineers and technicians who need to select, install, or calibrate the sensor in weighing applications. This manual is written in Chinese.
| Rated load | 10‑100 t (30‑200 klb) |
|---|---|
| Full scale accuracy | 0.02‑0.05 % FS |
| Sensitivity | 3.0 µV/V |
| Nonlinearity | 0.02‑0.05 % FS |
| Hysteresis | 0.02‑0.05 % FS |
| Repeatability | 0.02‑0.03 % FS |
| Zero shift (temperature effect) | 0.19 % FS |
| Operating temperature | -20 °C to +65 °C |
| Impedance | 700 Ω |
| Excitation voltage range | 5‑12 V (max 30 V) |
| Maximum excitation voltage | 30 V |
| IP protection rating | IP67 |
The sensor is rated for loads from 10 to 100 t (30 to 200 klb).
The sensor operates with an excitation voltage of 5‑12 V, and can tolerate up to 30 V maximum.
The sensor has an IP67 protection rating.
The sensor can be used from –20 °C to +65 °C.
